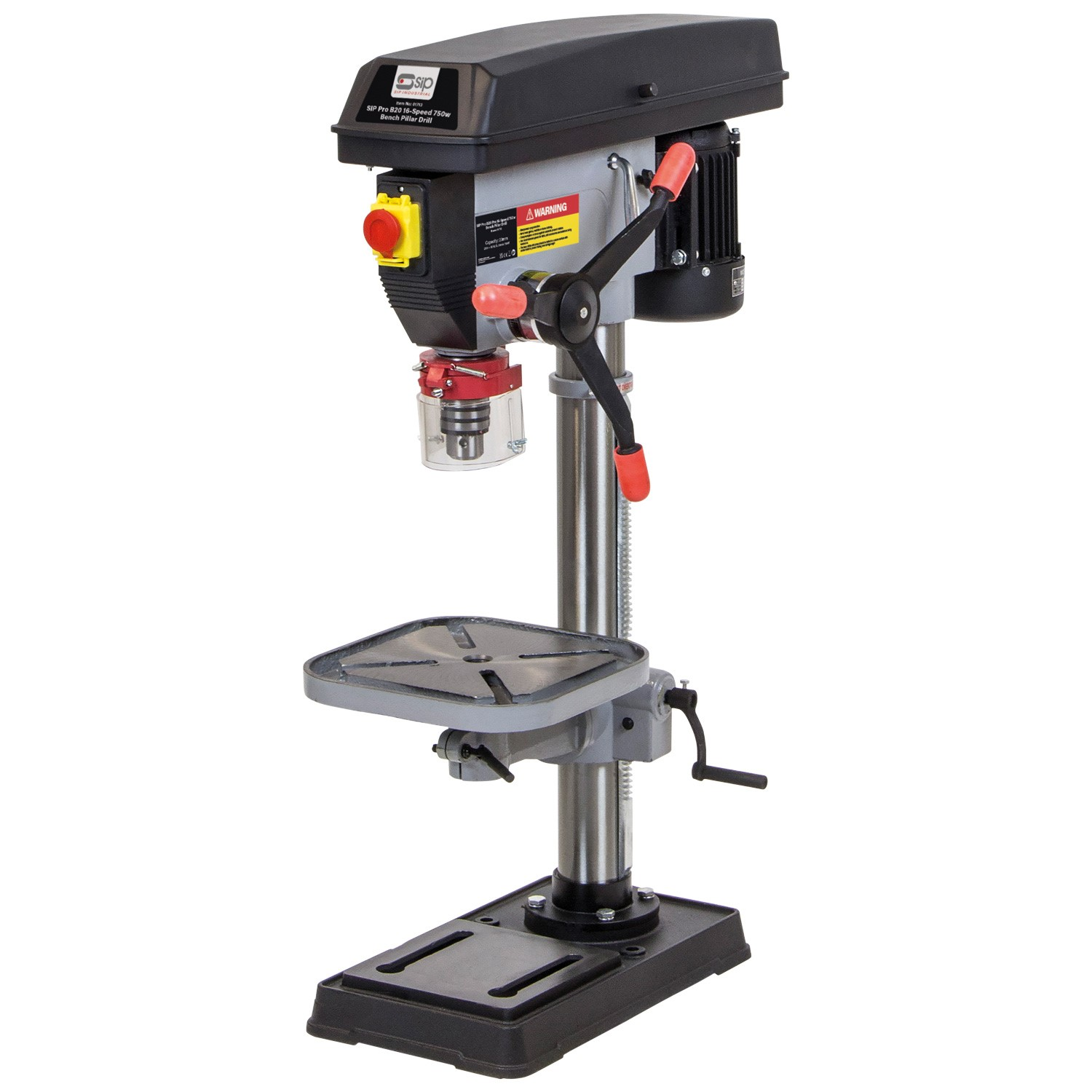

SIP Pro B20 16-Speed 750w Bench Pillar Drill 01713

SIP Pro B20 16-Speed 750w Bench Pillar Drill 01713

599.00 incl. Vat

The SIP Pro B20 16-Speed 750w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned for accurate drilling.

Note! Oversized, heavy or fragile delivery charge applies to this item!

EAN: 5012713017133 MPN: 01713 SKU: L0540 Category:

Description

KEY FEATURES

  • 16 spindle speeds powered by a 750w motor from a 230v (13A) supply
  • Supports a variety of drilling applications
  • High-power brushless induction motor
  • Fitted with drilling depth stop
  • Adjustable drill table for greater accuracy
  • Safety interlock switch for safe motor belt adjustment

Technical Information

ITEM NO. 01713
Input Voltage: 230v (13A)
Motor Power: 750w
No. of Speeds: 16 speeds
Speed Range: 150rpm – 3000rpm
Drill Bit Size: 5mm – 20mm
Spindle Taper: MT2
Table Size: 285mm x 285mm
Base Size: 460mm x 270mm
Column Diameter: Ø 72mm
Swing: 360mm
Height: 1000mm
Spindle Travel: 80mm
Collar Diameter: Ø 72mm
Max. Distance: 320mm (chuck to table)
510mm (chuck to base)
Net Weight: 48.50kg
Gross Weight: 50.50kg
Product Dimensions: 1000(H) x 290(W) x 460mm(D)
Packaged Dimensions: 275(H) x 810(W) x 490mm(D)

Additional information

Weight 50 kg
Dimensions 45 × 29 × 100 cm
