SIP F25-GB 8-Speed 900w Floor Pillar Drill 01719

KEY FEATURES

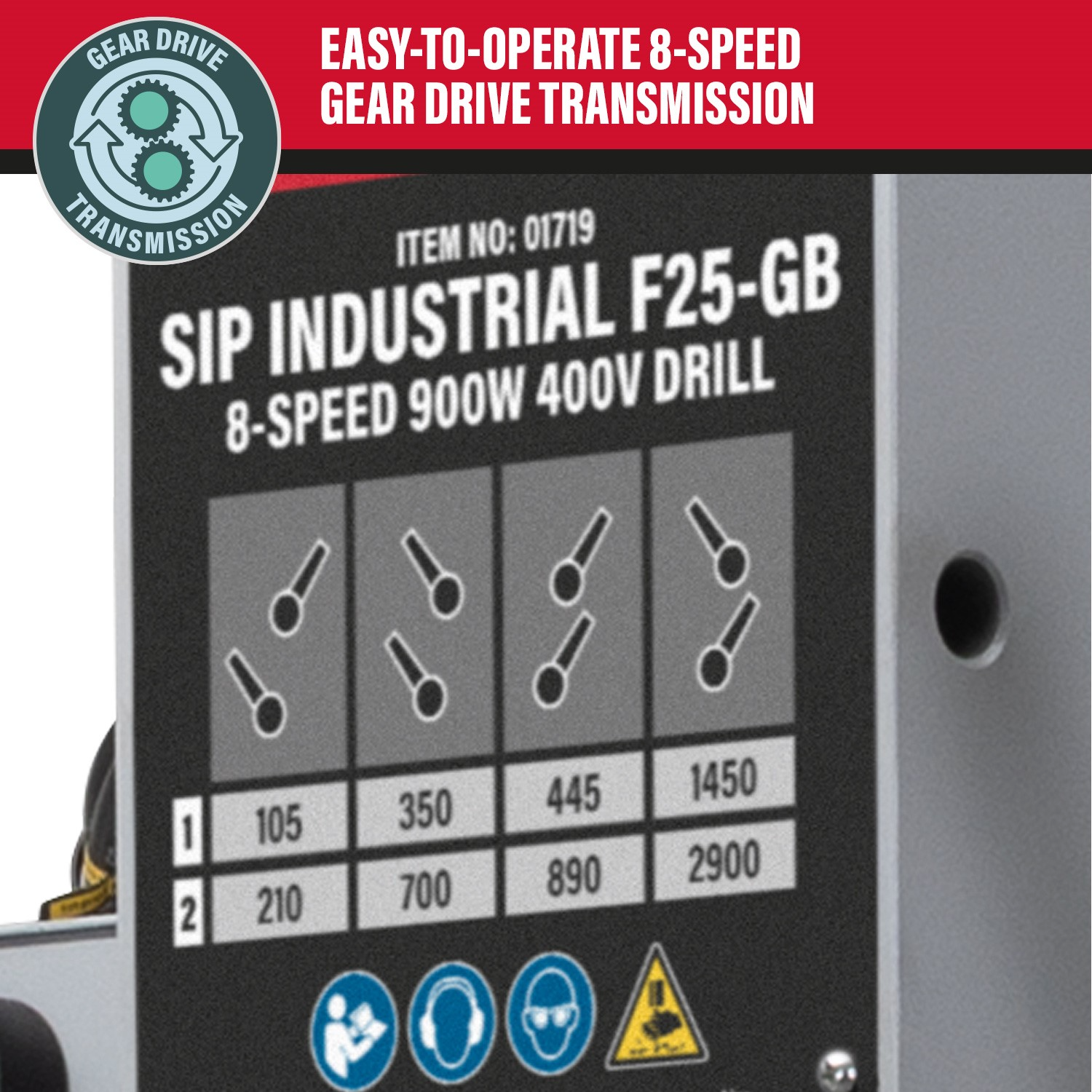

• 8-speed gear drive transmission with wide 105-2900rpm speed range
• Easy-to-operate headstock levers for precise spindle speed setting
• High torque output for consistent drilling power and max. ⌀ 25mm

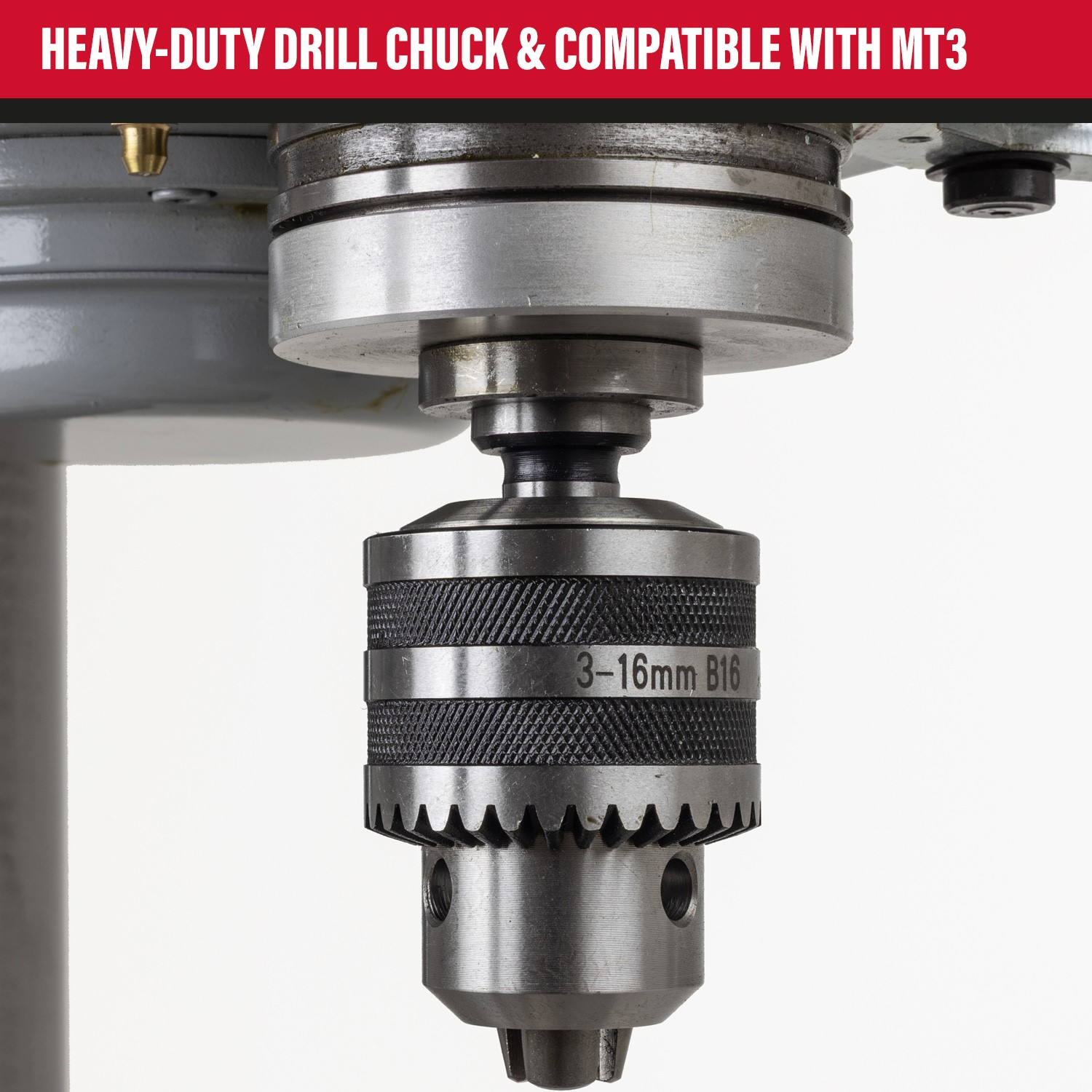

• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
• Large drill table with adjustable height and rotation for greater versatility
• Heavy baseplate and central column to minimise vibration for stable drilling


  Technical Information

  ITEM NO.	01719
  Input Supply:	400v (16A)
  Motor Power:	900w
  No. of Speeds:	8 speeds
  Speed Range:	105rpm – 2900rpm
  Max. Drilling Capacity:	25mm
  Spindle Taper:	MT3
  Table Size:	450mm x 320mm
  Base Size:	405mm x 390mm
  Column Diameter	⌀ 100mm
  Swing:	608mm
  Height:	1508mm
  Spindle Travel:	125mm
  Collar Diameter:	⌀ 130mm
  Max. Distance:	905mm (spindle to table)
  Net Weight:	190kg
  Gross Weight:	235kg
  Product Dimensions:	1508(H) x 560(W) x 570mm(D)
