SIP F32-ID Vari-Speed 2.2kW Floor Pillar Drill 01720

KEY FEATURES

• Variable frequency inverter drive transmission with wide 65-2000rpm speed range
• Infinitely variable control dial for precise spindle speed setting
• High torque output for consistent drilling power of up to max. ⌀ 32mm

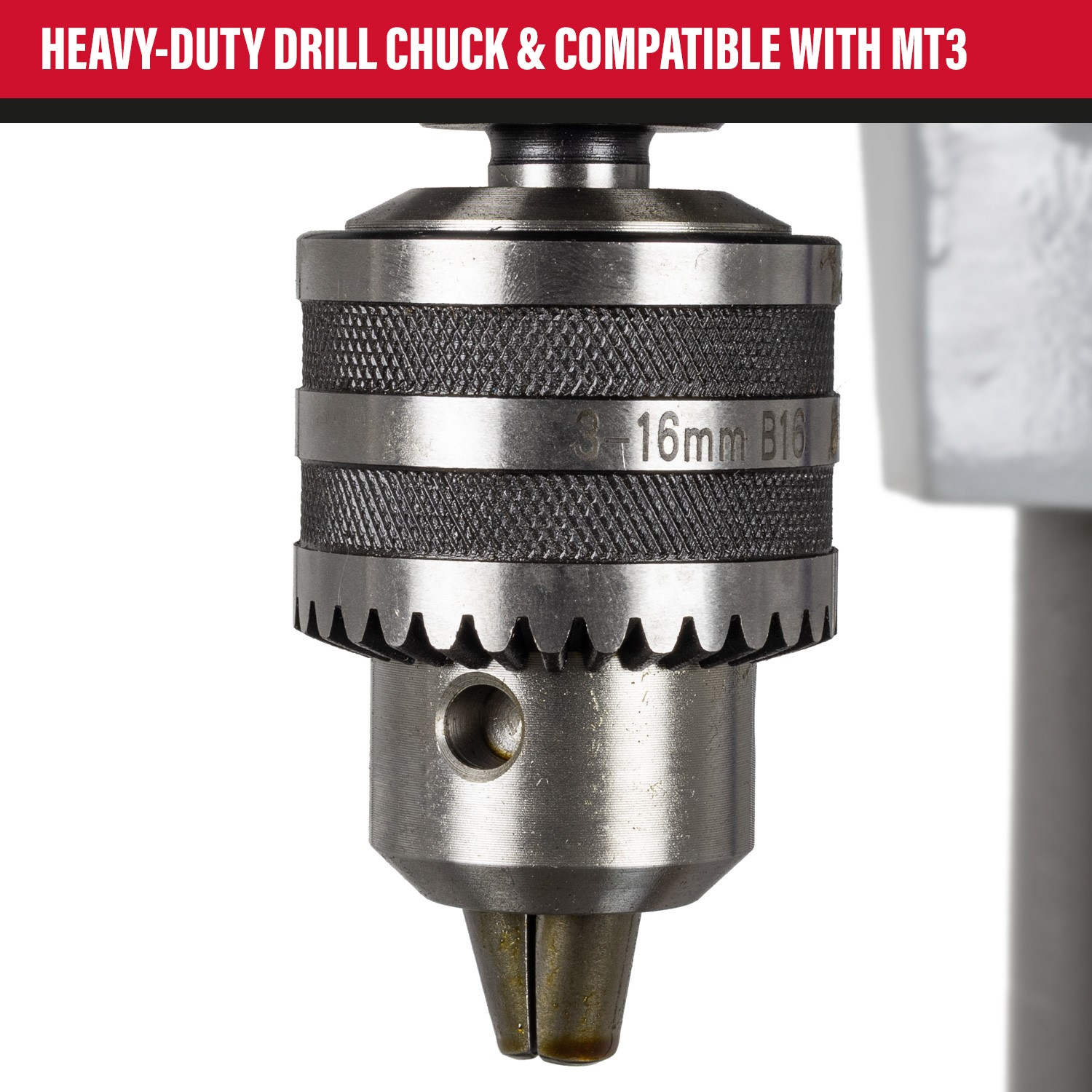

• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
• Tapping function for threading high-quality screw holes up to max. ⌀ 19mm

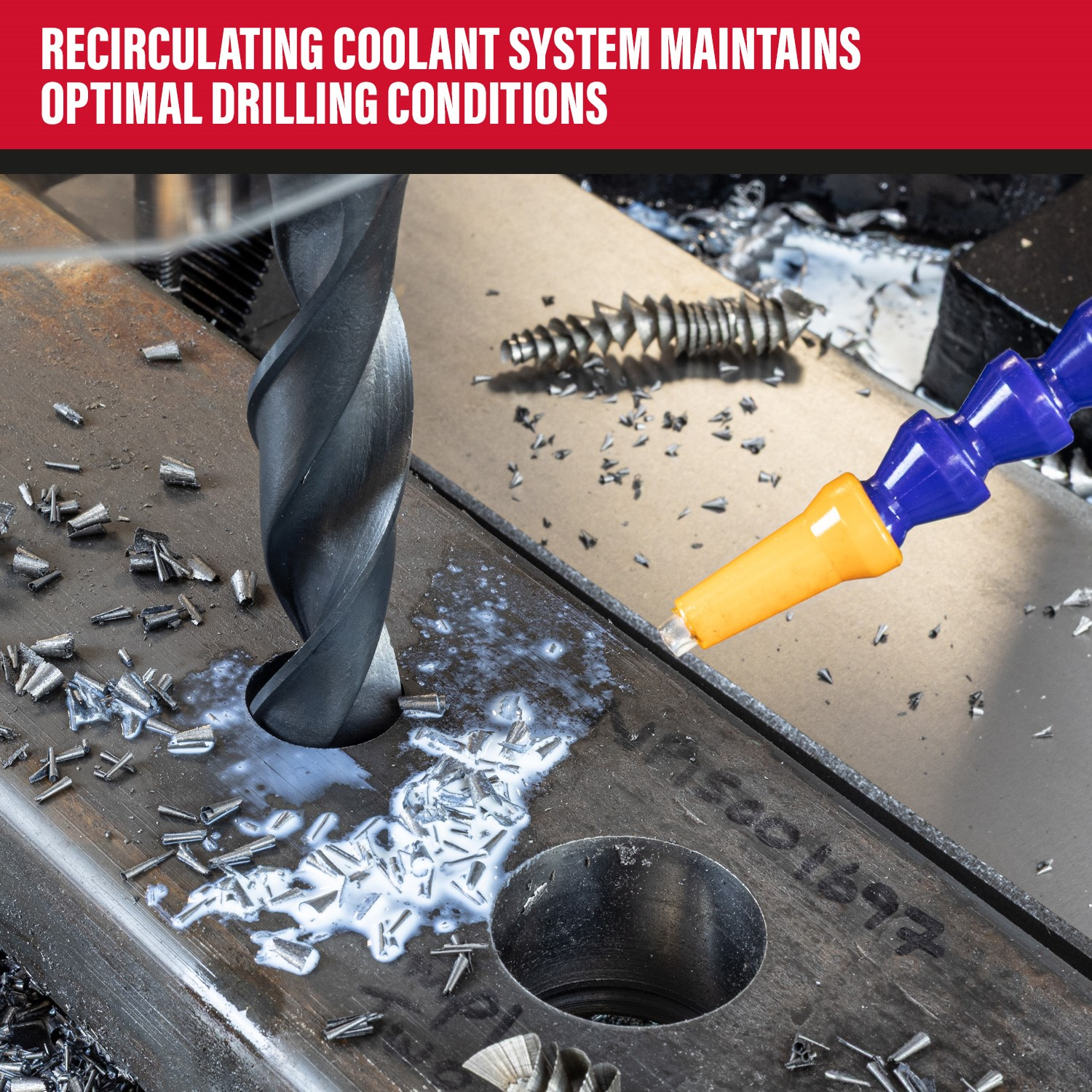

• Recirculating coolant system maintains optimal drilling conditions


  Technical Information

  ITEM NO.	01720
  Input Supply:	400v (16A)
  Motor Power:	2.2kW
  No. of Speeds:	65rpm – 540rpm (low) / 245rpm – 2000rpm (high)
  Max. Drilling Capacity:	32mm
  Max. Tapping Capacity:	19mm
  Spindle Taper:	MT3
  Table Size:	560mm x 475mm
  Base Size:	688mm x 486mm
  Column Diameter	⌀ 115mm
  Swing:	530mm
  Height:	1665mm
  Spindle Travel:	150mm
  Collar Diameter:	⌀ 174mm
  Max. Distance:	530mm (spindle to table) / 1180mm (spindle to base)
  Net Weight:	380kg
  Gross Weight:	455kg
  Product Dimensions:	1665(H) x 650(W) x 1090mm(D)
  Packaged Dimensions:	1000(H) x 800(W) x 1900mm(D)
