The SIP B16 12-Speed 450w Bench Pillar Drill makes light work of preparing and finishing workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.

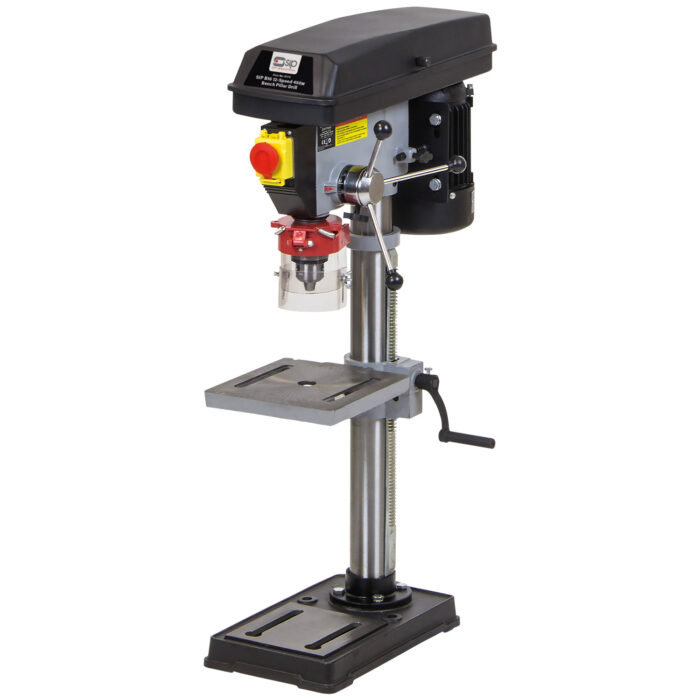

SIP B16 12-Speed 450w Bench Pillar Drill 01711
€299.00 incl. Vat
Description
KEY FEATURES
- 12 spindle speeds powered by a 450w motor from a 230v (13A) supply
- Supports a variety of drilling applications
- High-power brushless induction motor
- Fitted with drilling depth stop
- Adjustable drill table for greater accuracy
- Safety interlock switch for safe motor belt adjustment
Technical Information
ITEM NO. | 01711 |
Input Voltage: | 230v (13A) |
Motor Power: | 450w |
No. of Speeds: | 12 speeds |
Speed Range: | 300rpm – 2550rpm |
Drill Bit Size: | 3mm – 16mm |
Spindle Taper: | B16 |
Table Size: | 195mm x 200mm |
Base Size: | 340mm x 205mm |
Column Diameter: | Ø 58mm |
Swing: | 260mm |
Height: | 840mm |
Spindle Travel: | 60mm |
Collar Diameter: | Ø 58mm |
Max. Distance: | 350mm (chuck to table) 470mm (chuck to base) |
Net Weight: | 28.00kg |
Gross Weight: | 29.60kg |
Product Dimensions: | 840(H) x 200(W) x 340mm(D) |
Packaged Dimensions: | 260(H) x 665(W) x 410mm(D) |
Additional information
Weight | 28 kg |
---|---|
Dimensions | 34 × 20 × 84 cm |
Brand | SIP Industrial |
