The SIP B13 5-Speed 350w Bench Pillar Drill makes light work of preparing and finishing workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.

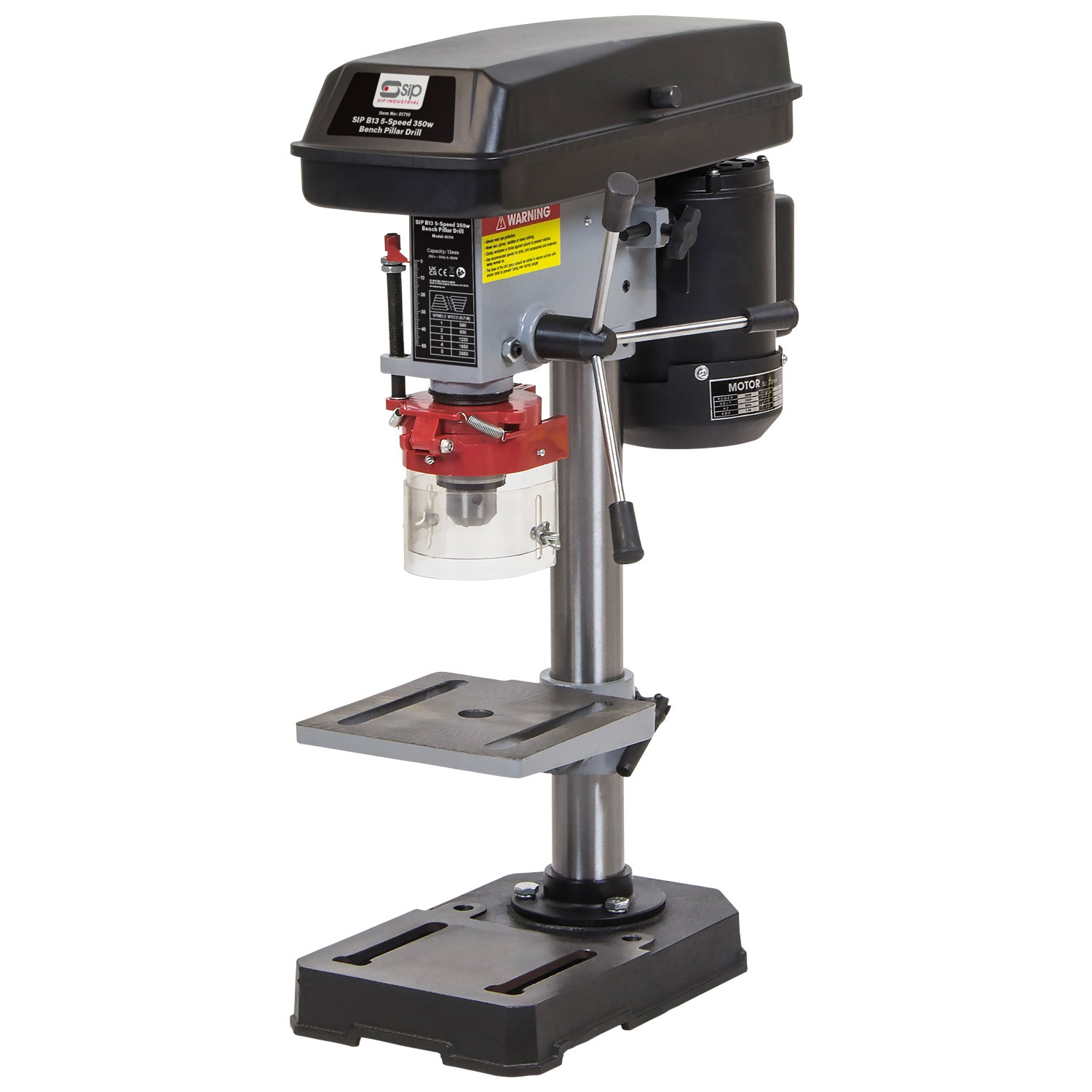

SIP B13 5-Speed 350w Bench Pillar Drill 01710
€199.00 incl. Vat
Description
KEY FEATURES
- 5 spindle speeds powered by a 350w motor from a 230v (13A) supply
- Supports a variety of drilling applications
- High-power brushless induction motor
- Fitted with drilling depth stop
- Adjustable drill table for greater accuracy
- Safety interlock switch for safe motor belt adjustment
Technical Information
ITEM NO. | 01710 |
Input Voltage: | 230v (13A) |
Motor Power: | 350w |
No. of Speeds: | 5 speeds |
Speed Range: | 580rpm – 2650rpm |
Drill Bit Size: | 1.5mm – 13mm |
Spindle Taper: | B16 |
Table Size: | 160mm x 160mm |
Base Size: | 290mm x 182mm |
Column Diameter: | Ø 46mm |
Swing: | 210mm |
Height: | 580mm |
Spindle Travel: | 50mm |
Collar Diameter: | Ø N/A |
Max. Distance: | 169mm (chuck to table) 250mm (chuck to base) |
Net Weight: | 14.00kg |
Gross Weight: | 15.00kg |
Product Dimensions: | |
Packaged Dimensions: | 245(H) x 450(W) x 345mm(D) |
Additional information
Weight | 15 kg |
---|---|
Dimensions | 34 × 45 × 24 cm |
Brand | SIP Industrial |
