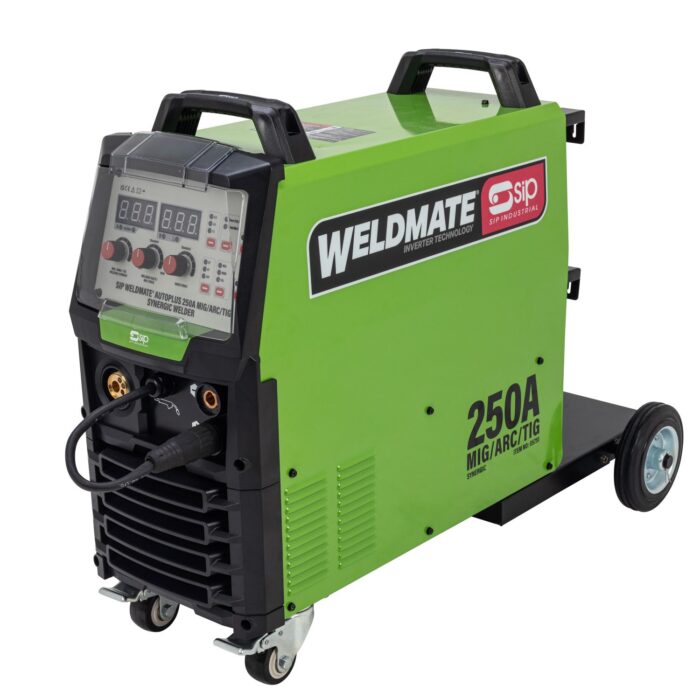

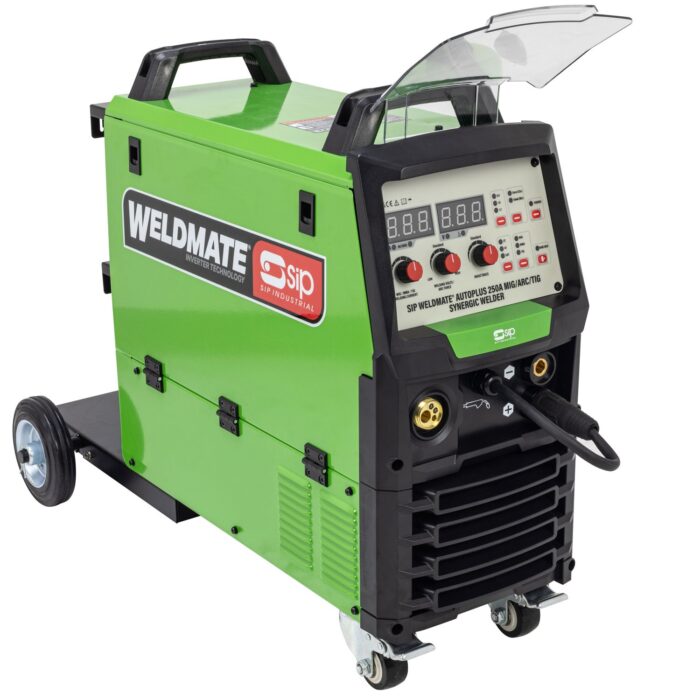

SIP WELDMATE® AUTOPLUS 250A MIG/ARC/TIG Welder 05751

KEY FEATURES

• Multi-process MIG/ARC/TIG welder for greater welding flexibility at high duty cycles
• Features Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty cast aluminium 2-roll wire feeder for smooth consistent flow of wire

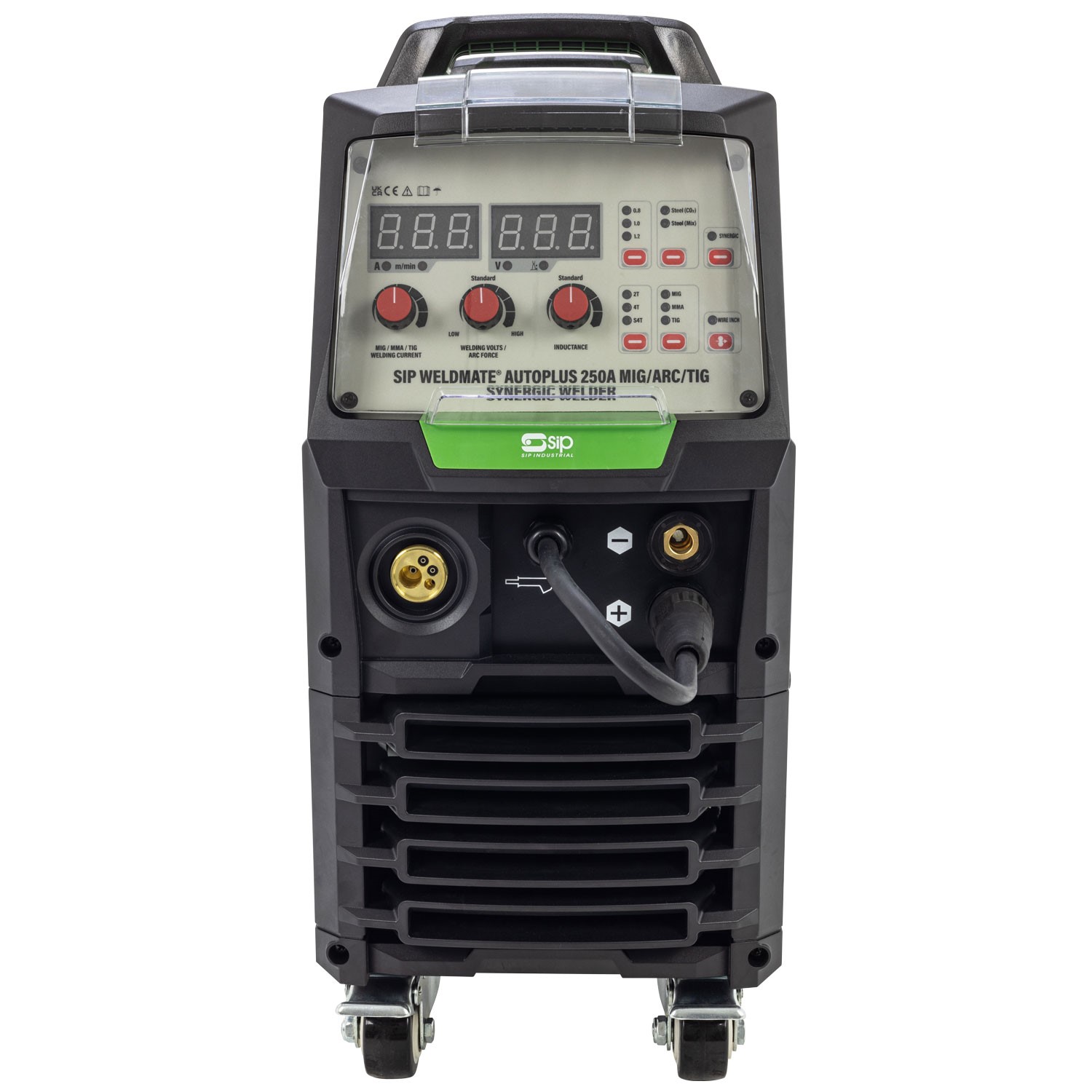

• Intuitive control panel to select between welding processes and function settings

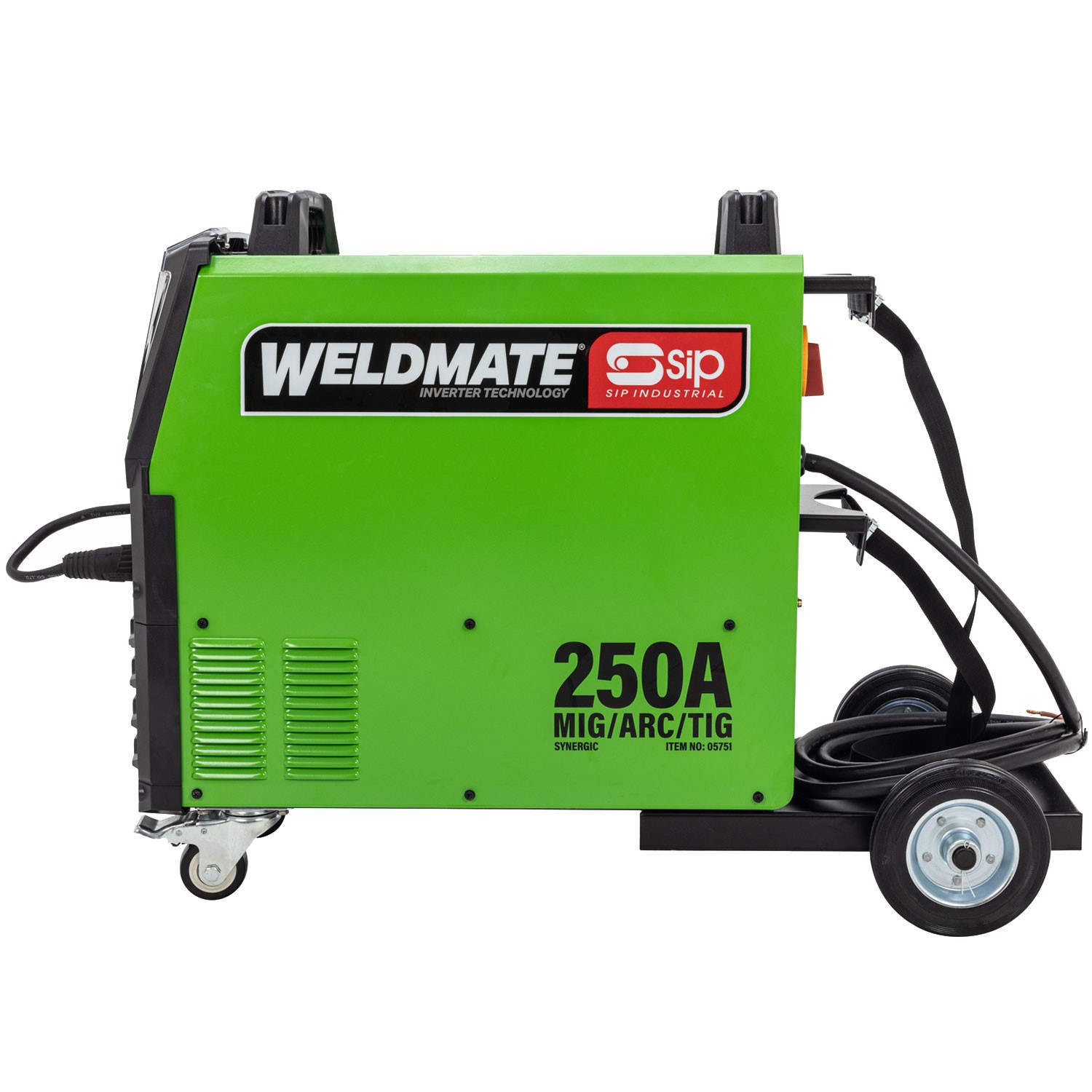

• Wheel-mounted design with lockable front castors for mobility around work area

• Technical Information

  ITEM NO.	05751
  Input Supply:	230v (32A)
  Welding Process:	MIG	ARC	TIG
  Output Voltage:	15.5v – 26.5v	21.2v – 30v	10.4v – 20v
  Output Current:	30A – 250A	30A – 250A	10A – 250A
  Duty Cycle @ 20°C:	250A @ 80%	250A @ 80%	250A @ 80%
  Wire Diameter:	⌀ 0.8mm – 1.2mm
  Wire Spool Size:	5kg, 15kg
  Welding Material Thickness:	0.8mm – 8.5mm (mild steel)
  Protection / Insulation	21S / H
  Net Weight:	40kg
  Gross Weight:	43kg
  Product Dimensions:	650(H) x 450(W) x 880mm(D)
  Packaged Dimensions:	620(H) x 400(W) x 670mm(D)
