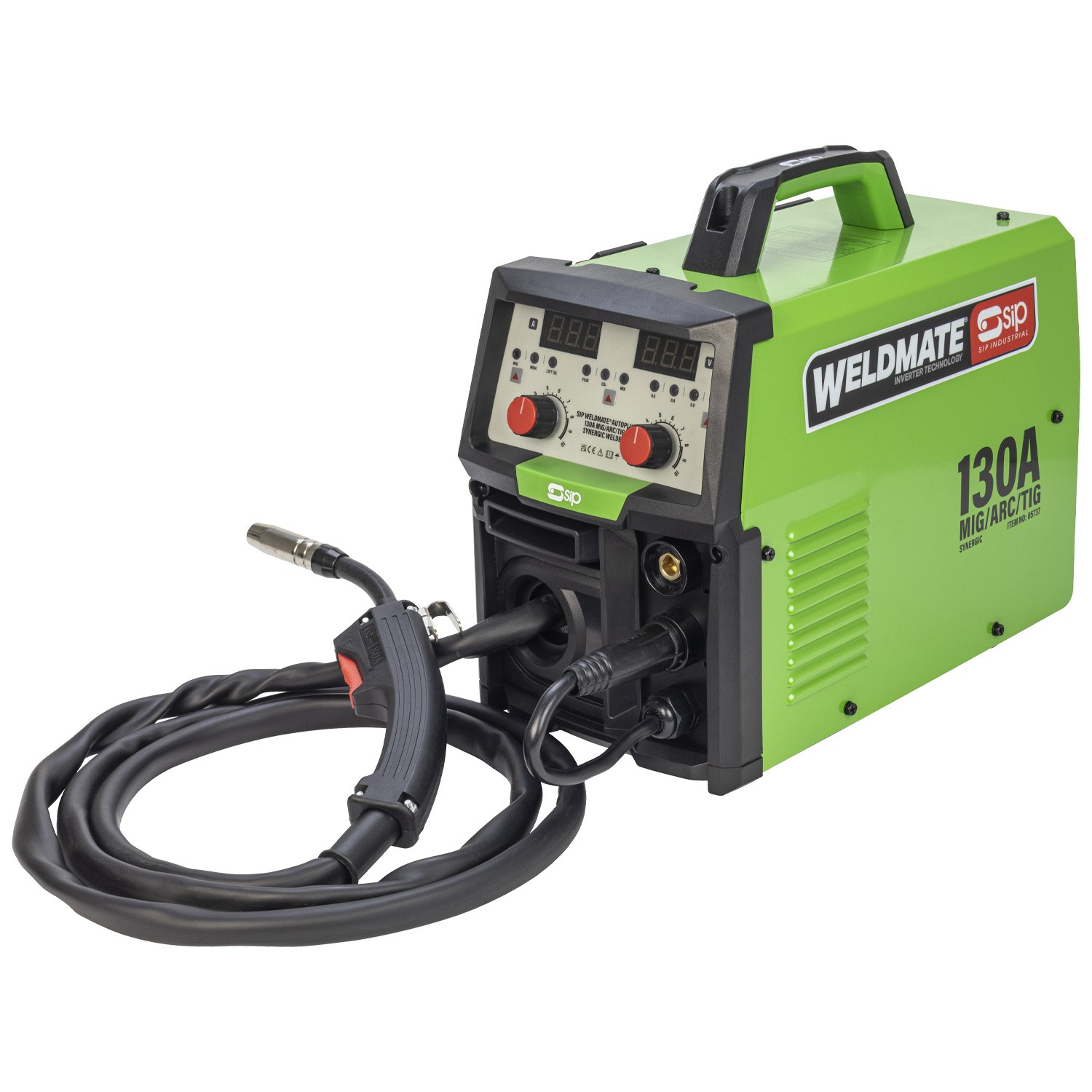

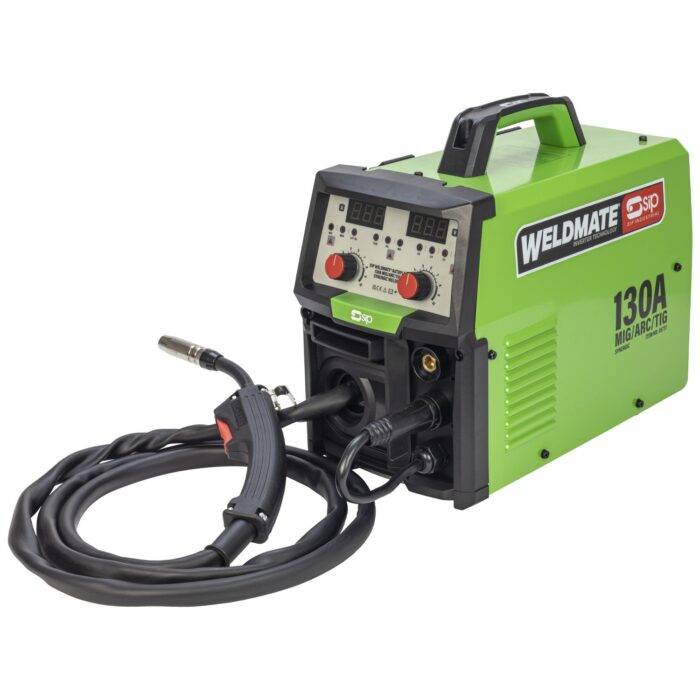

SIP WELDMATE® AUTOPLUS 130A MIG/ARC/TIG Welder 05737

KEY FEATURES

• Multi-process MIG/ARC/TIG welder for greater flexibility
• Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Durable wire feeder ensures smooth consistent flow of wire to torch
• Intuitive control panel to select between process, gas and wire size
• Metal casing with strong-grip carry handle for long life use

• Technical Information

  ITEM NO.	05737
  Input Supply:	230v (13A)
  Welding Process:	MIG	ARC	TIG
  Output Voltage:	16.5v – 20v	20.8v – 25.2v	10.8v – 15.2v
  Output Current:	20A – 130A	20A – 130A	20A – 130A
  Duty Cycle @ 20°C:	130A @ 30%	130A @ 30%	130A @ 30%
  Wire Diameter:	⌀ 0.8mm – 0.9mm
  Wire Spool Size:	0.7kg
  Welding Material Thickness:	0.8mm – 4.5mm (mild steel)
  Protection / Insulation	21S / H
  Net Weight:	8kg
  Gross Weight:	9.5kg
  Product Dimensions:	310(H) x 170(W) x 330mm(D)
  Packaged Dimensions:	405(H) x 330(W) x 365mm(D)
