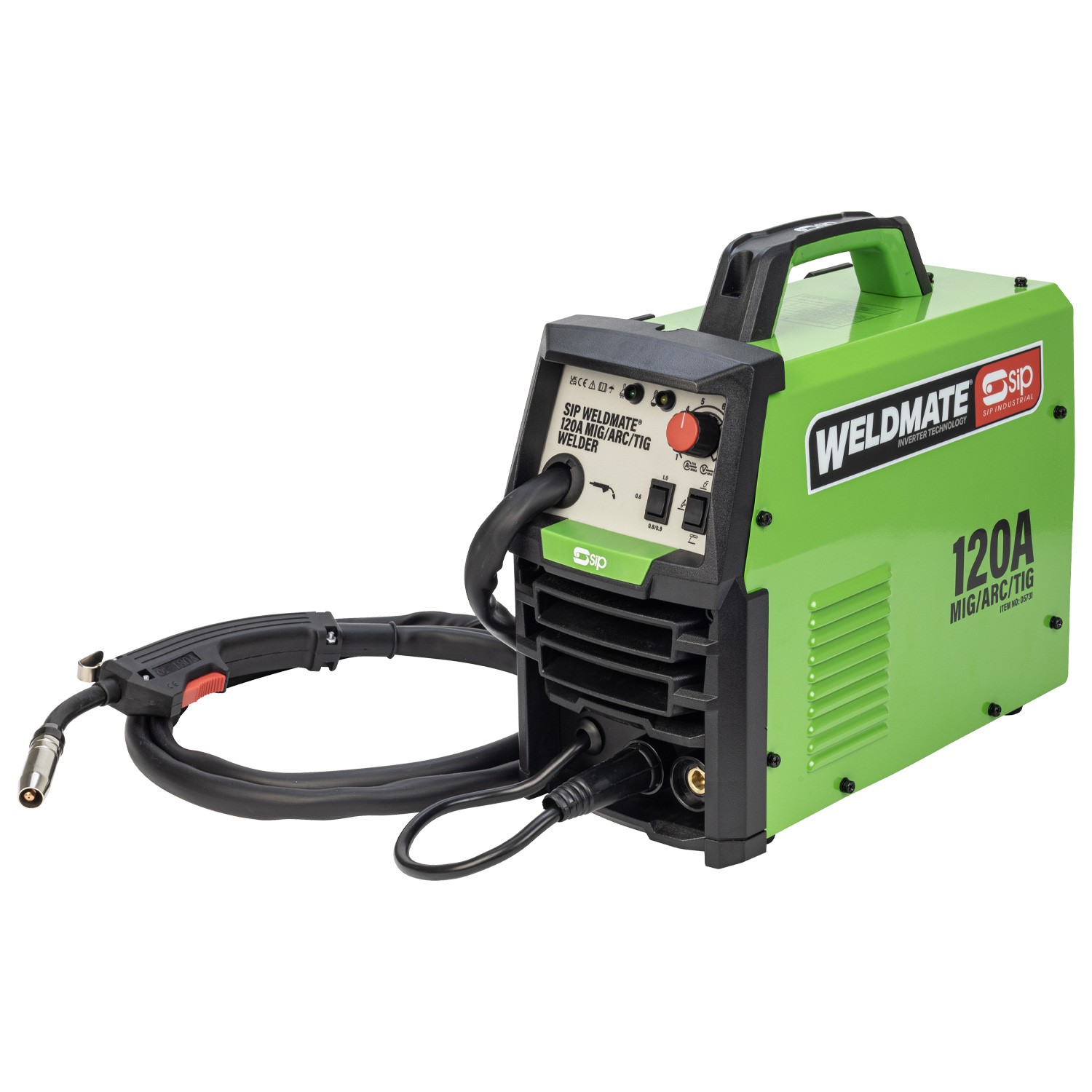

SIP WELDMATE® 120A MIG/ARC/TIG Welder 05731

KEY FEATURES

• Multi-process MIG/ARC/TIG welder for greater flexibility
• Also performs gasless MIG welding for added versatility
• All accessories needed to weld straight from the box supplied
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Infinitely variable dial for smoother stepless output adjustment
• Compact and portable design for mobility around work area

• Technical Information

  ITEM NO.	05731
  Input Supply:	230v (13A)
  Welding Process:	MIG	ARC	TIG
  Output Voltage:	15v – 20v	18.8v – 22v	10.8v – 14v
  Output Current:	20A – 120A	20A – 100A	20A – 100A
  Duty Cycle @ 40°C:	120A @ 15%	100A @ 15%	100A @ 15%
  Wire Diameter:	⌀ 0.8mm – 0.9mm
  Wire Spool Size:	0.7kg
  Welding Material Thickness:	0.8mm – 4mm (mild steel)
  Protection / Insulation	21S / H
  Net Weight:	7kg
  Gross Weight:	8.4kg
  Product Dimensions:	310(H) x 170(W) x 340mm(D)
  Packaged Dimensions:	380(H) x 280(W) x 385mm(D)
