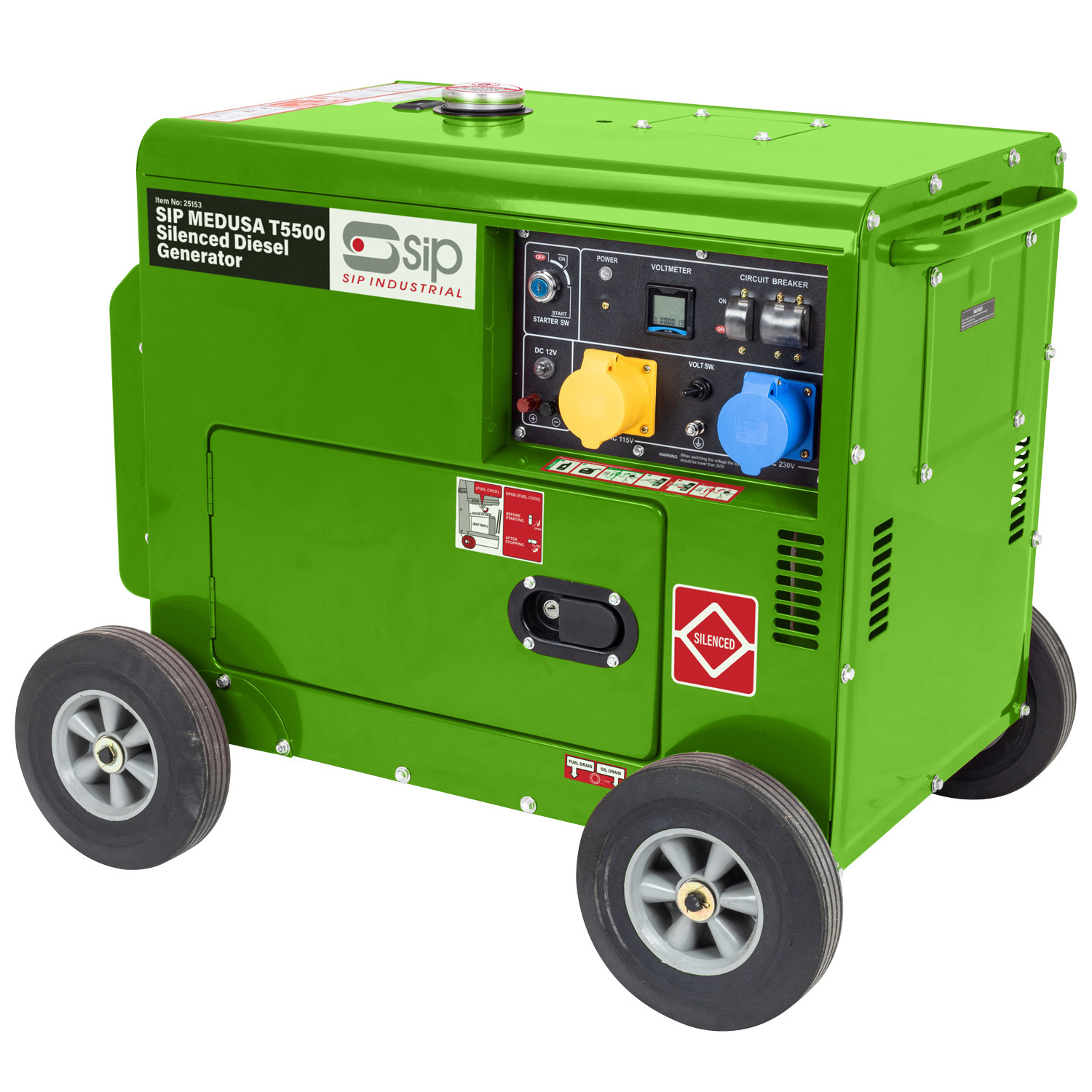

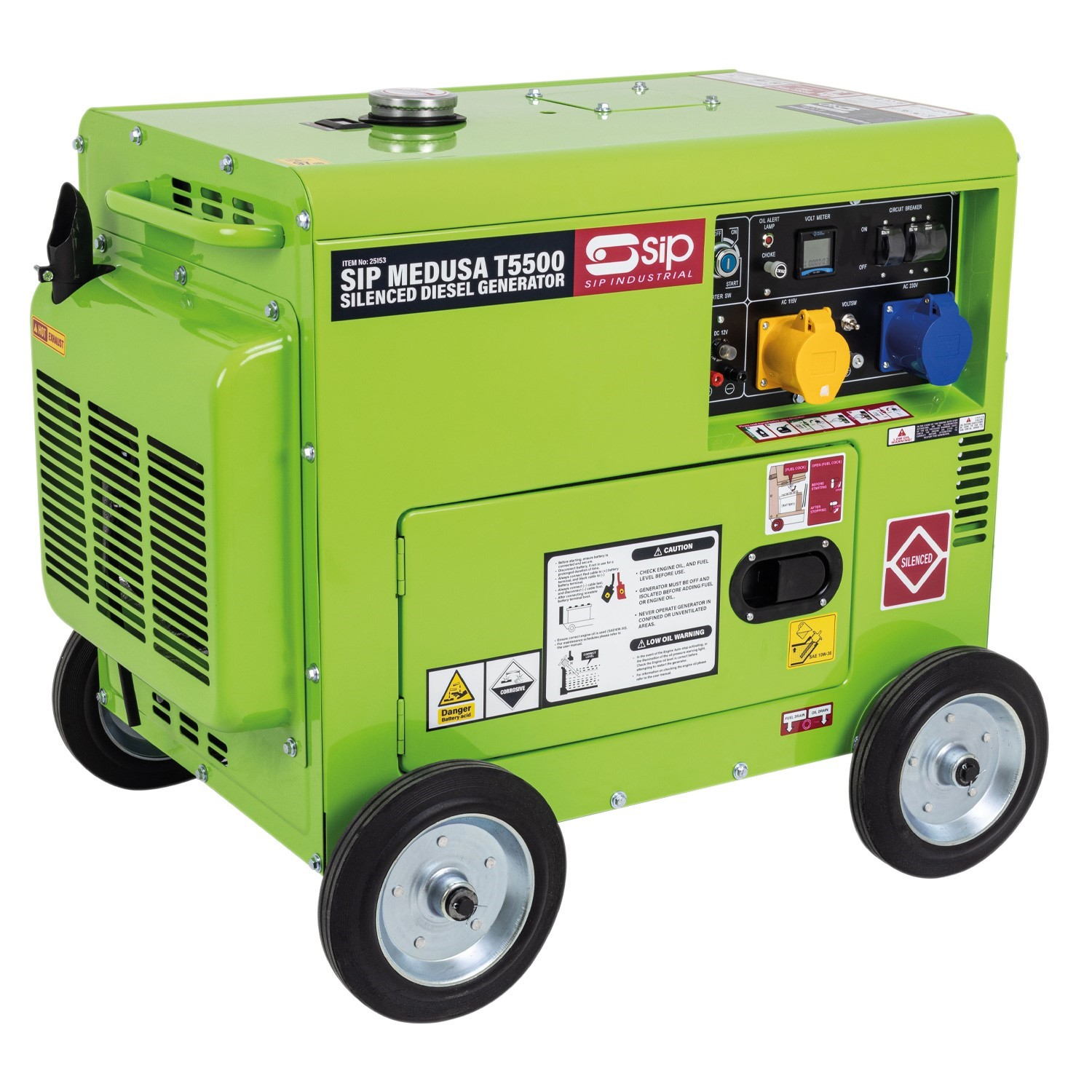

The SIP MEDUSA T5500 Silenced Diesel Generator is a mobile power supply solution suitable for workshops, general construction and mobile hospitality. Other uses include powering machinery, tools and lighting. At peak output it supplies 5.5kA/5.5kW and at continuous 5kVA/5kW. Overall runtime provides 7.5hrs at 100% load and
15hrs at 50% load for a dependable supply when needed most.

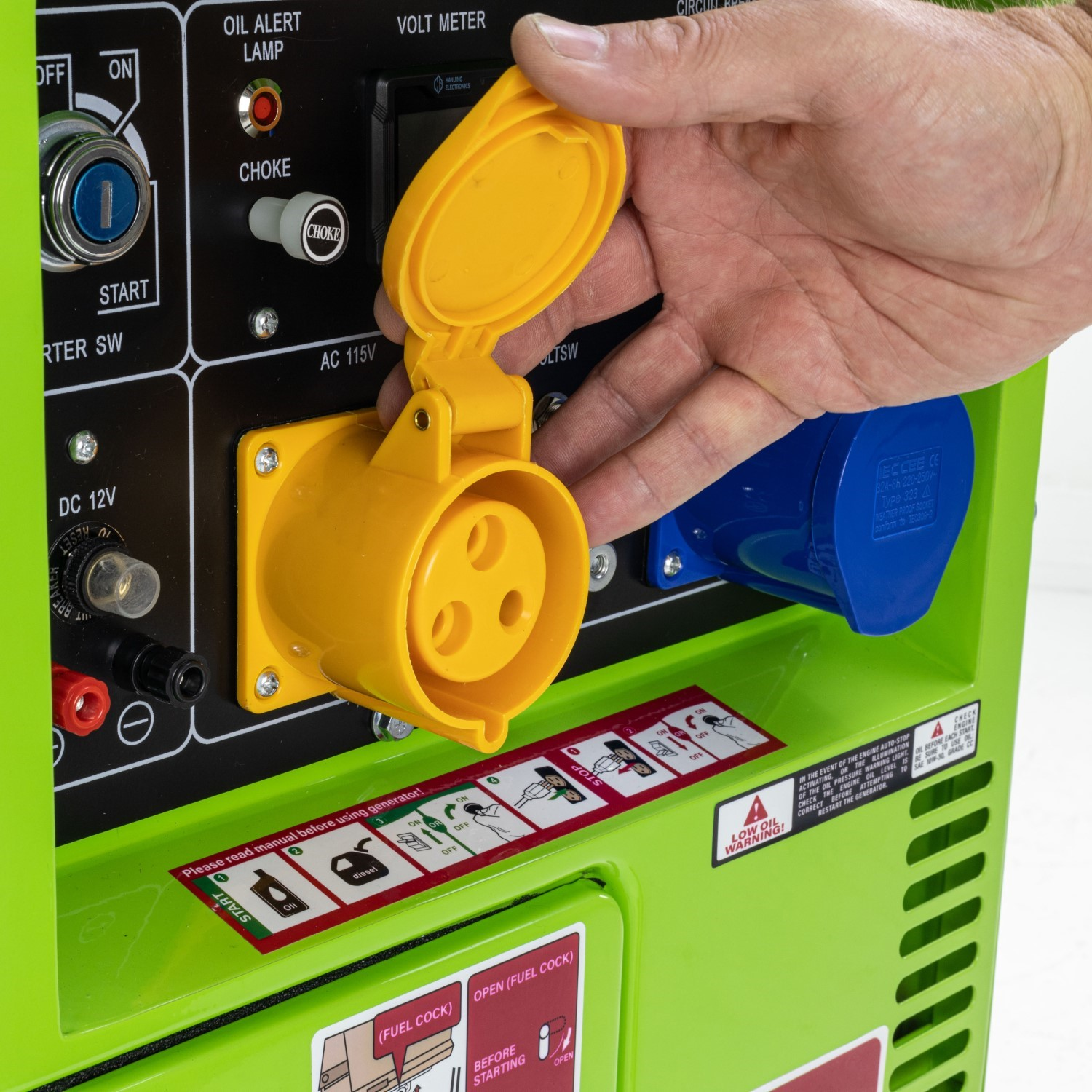

110v (3.5kW) and 230v (5kW) sockets are fitted to the control panel with a changeover switch for selecting supply types. A dual-purpose digital display indicates current volts in use and overall runtime to help monitor usage.
A circuit breaker prevents overload, whilst a mains isolator switch and earth point maximise personal safety.
Powerful yet silenced at 97dB(A), it is enclosed in a heavy-duty metal cabinet for soundproofing and to safeguard against chips and damage. An easy-access service panel is fitted.
It is equipped with rough terrain wheels enabling full use in on-site and outdoor areas and has IP23M protection.
110v and 230v supply with AVR
16ltr fuel tank with up to 15hrs runtime
Heavy-duty 97dB(A) silenced cabinet
Key ignition electric start
5.5kvA/5.5kW peak / 5kVA/5kW cont. outputs
Fitted with rough terrain wheels
Circuit breaker for overload protection
Digital display indicates volts and runtime
SIP UK 2 Year warranty (parts and labour) or 1000 working hours which ever comes first.
ITEM NO. 25153
Engine Type EURO V 0.5ltr diesel single cylinder
Start System Key ignition electric start
Alternator Type Single phase AC generator
Regulation Automatic Voltage Regulator (AVR)
Peak / Cont. Output 5.5kVA / 5.5kW (peak) / 5kVA / 5kW (continuous)
AC Voltage 1x 110v @ 3.5kW / 1x 230v @ 5kW
DC Voltage / DC Current 12v / 6A
Fuel Capacity 16ltr
Runtime 7.5hrs @ 100% load / 15hrs @ 50% load
Battery Specification 12v 36Ah
Protection Class IP23M
Sound Power (LwA) 97dB(A)
Net Weight 155.00kg
Gross Weight 172.00kg
Product Dimensions 795(H) x 930(W) x 690mm(D)
Packaged Dimensions 910(H) x 955(W) x 740mm(D)
This is just what we needed for a house remodel job. Easy to start, relatively quiet. We bought a 32A-16A adapter lead to make it easy to use most of the tools and the water pump.
