Belt driven – for smoother quieter operation and extended motor life.
Note: Clearance item, SIP are changing to new model.
€379.00 incl. Vat
Belt driven – for smoother quieter operation and extended motor life.
Note: Clearance item, SIP are changing to new model.

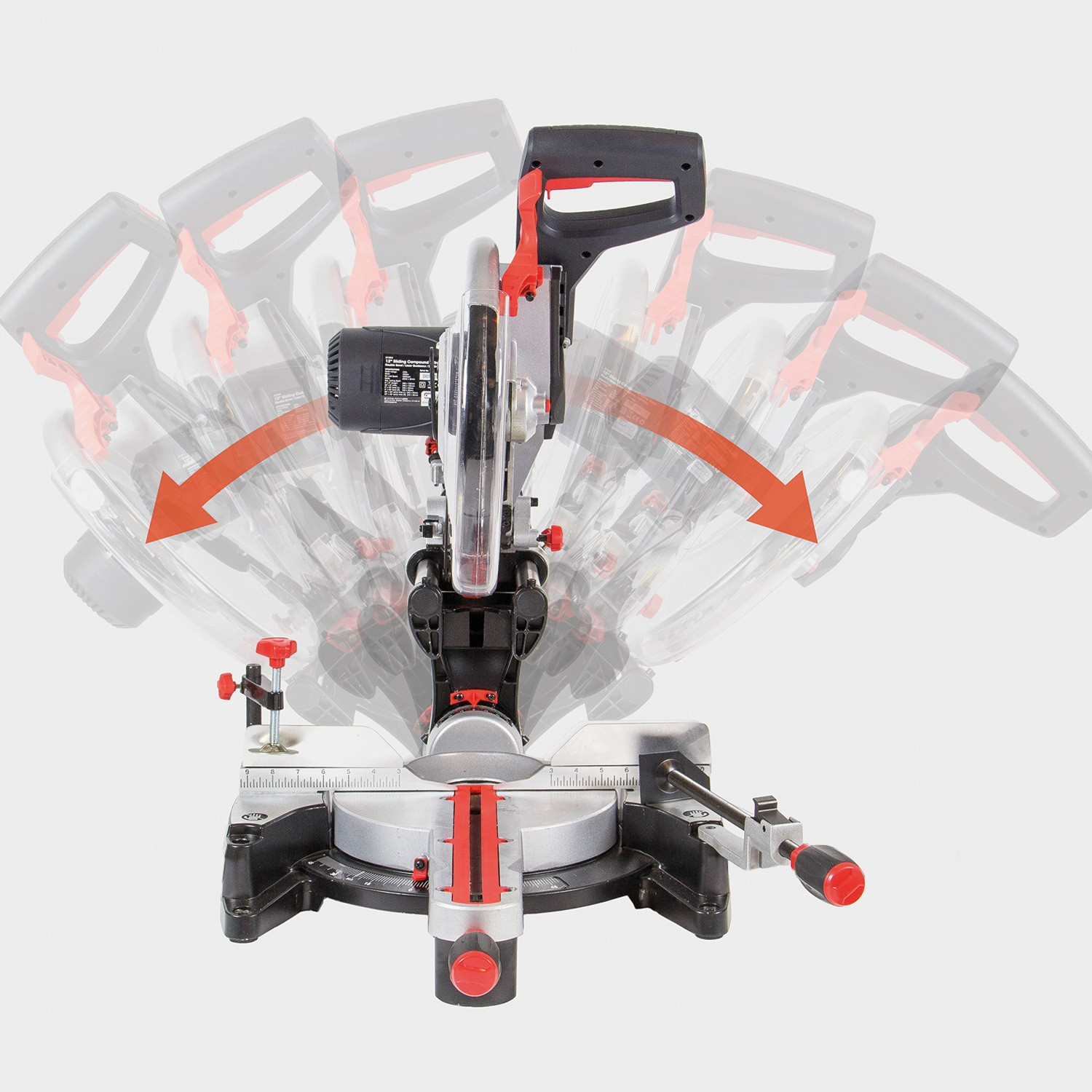

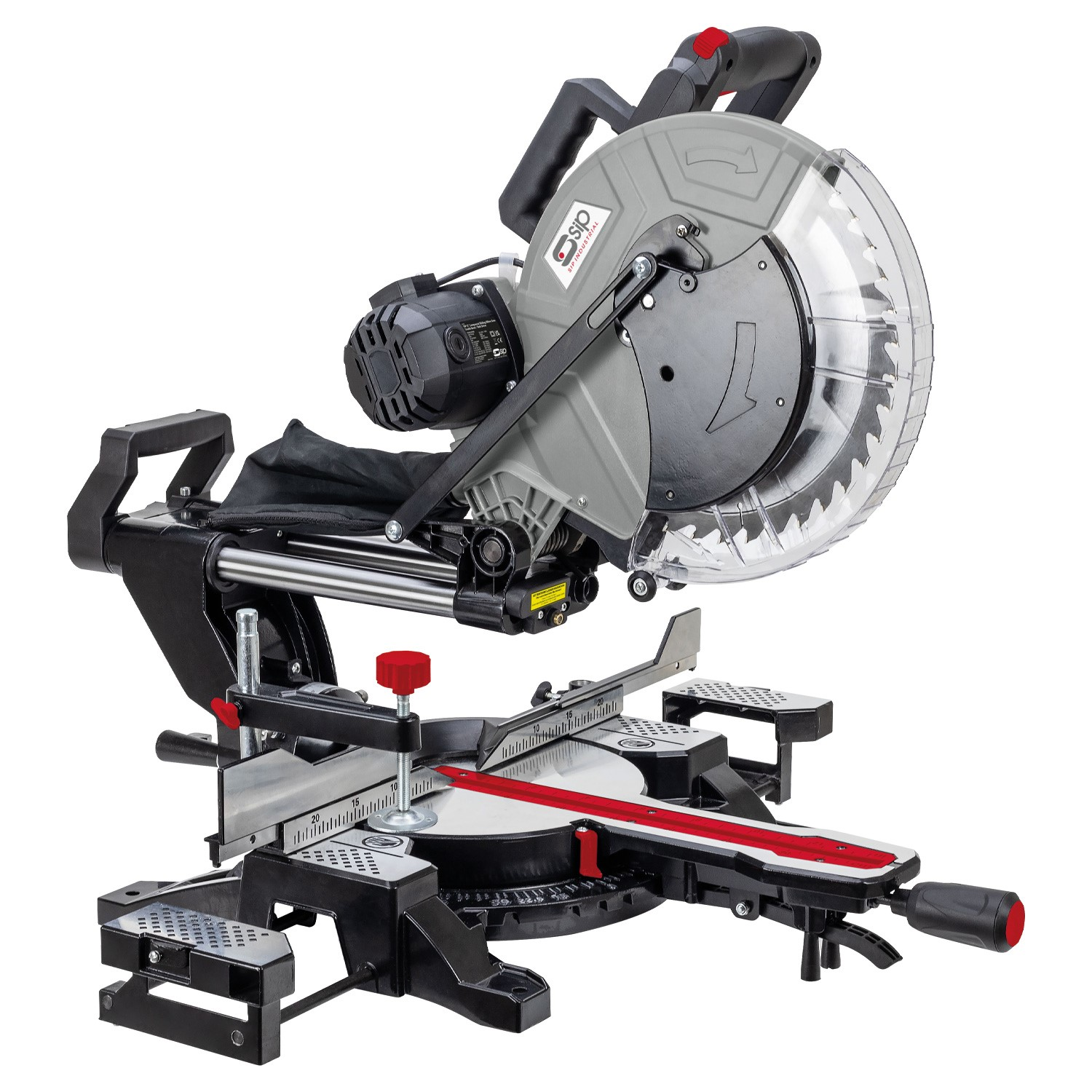

The 12″ Compound Mitre Saw is an ultra-versatile due to it’s double bevel action 45° both left and right. A belt-driven motor is installed for smoother operation and extended service life.
230v (13amp) input supply
4500.0rpm no-load blade speed
High torque 2.0kW (2.7hp) motor
Standard mitre range: -45°/0°/+45°
305.0mm Ø 30.0mm x 40TCT saw blade
Adjustable depth stop for tenon/trenching
Belt-drive for smoothest operation and life

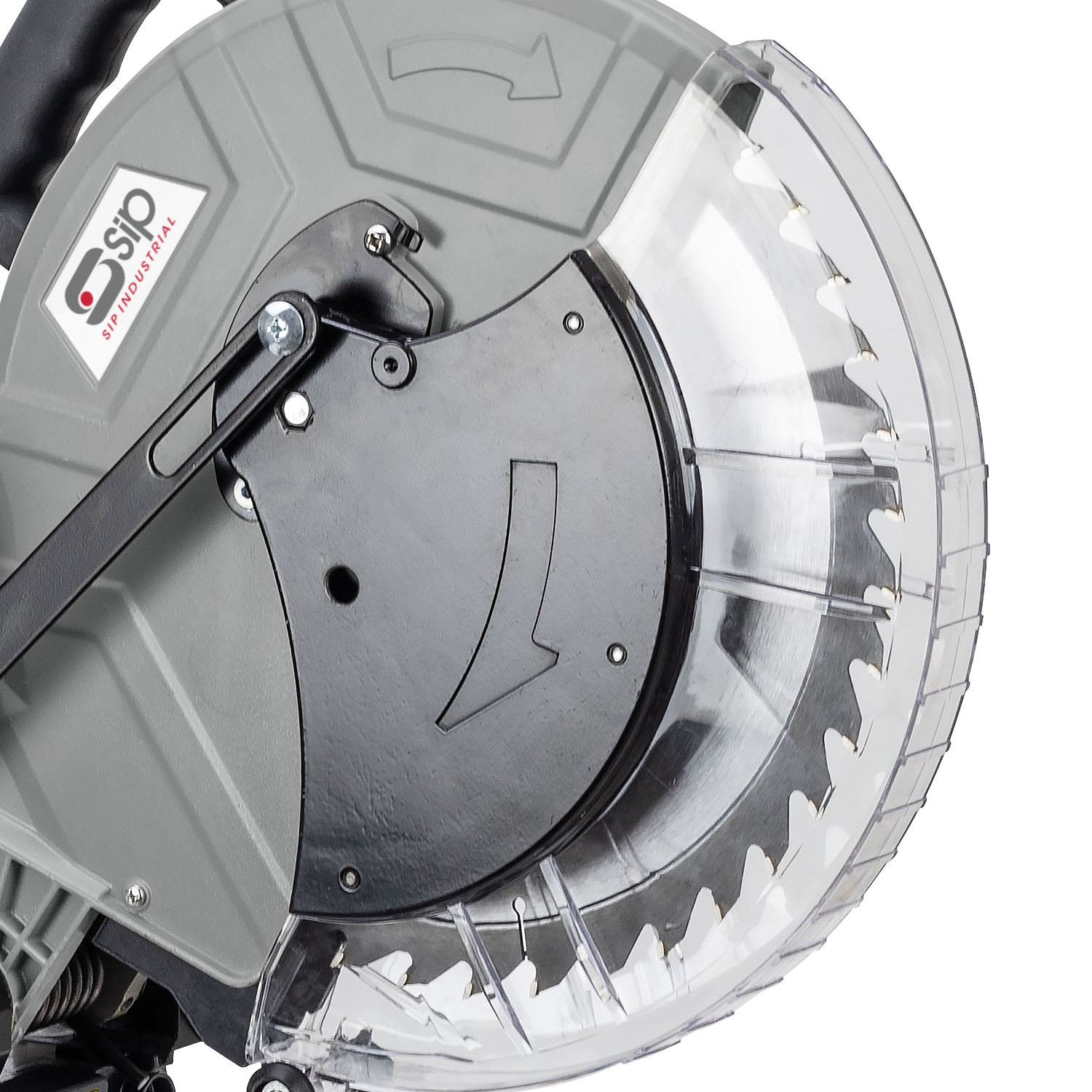

Automatic retracting lower guard for safety
Dust extraction bag for cleaner usage

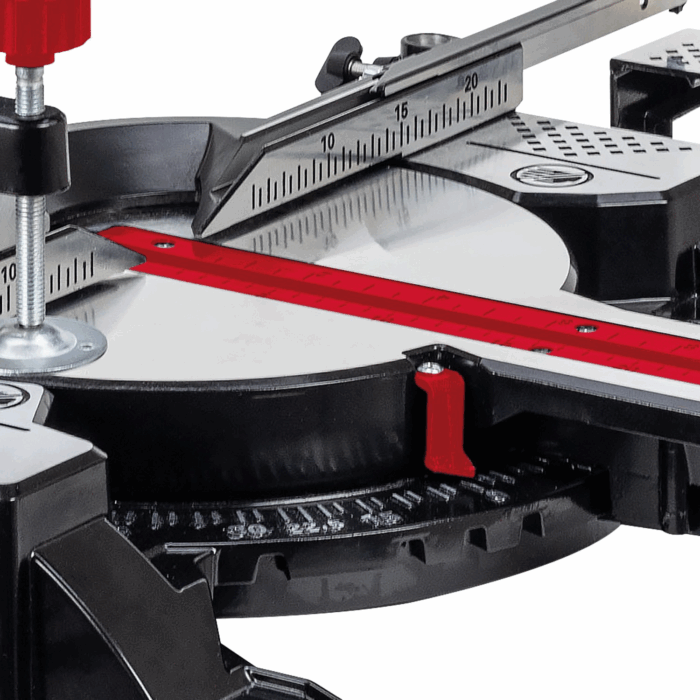

Rotating table with pre-set stops:
0°, 15°, 22.5°, 30° and 45°
ITEM NO. | 01504 |
Supply | 230v (13amp) |
Motor | 2.0kW (2.7hp) |
Mitre Range | -45° / 00° / +45° |
Cutting Capacities | |
Straight Cut @ 0° x 0° | 340 x 102mm |
Mitre Cut @ 45° x 0° | 240 x 102mm |
Left Bevel @ 0° x 45° | 340 x 55mm |
Right Bevel @ 0° x 45° | 340 x 40mm |
Left Comp. Mitre @ 45° x 45° | 240 x 55mm |
Right Comp. Mitre @ 45° x 45° | 240 x 40mm |
Blade Diameter | 305.0mm |
Blade Bore | 30.0mm |
Blade Teeth/Type | 40/TCT |
Blade Speed | 4500rpm |
Gross Weight | 21.0kg |
Packaged Dimensions | 530 x 575 x 910mm |
Additional | Adjustable depth stop |
Weight | 25 kg |
---|---|
Dimensions | 57 × 92 × 53 cm |
Brand | SIP Industrial |
