SIP QT DD 4.5hp 200ltr Ultra Low Noise Compressor 05498

KEY FEATURES

• 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD)
• Ultra low noise six-cylinder motor pump unit operates at just 67dB
• Slow-running oil-free 4-pole motors for longer life performance (4.5hp/3.3kW)
• Mains supply control box initiates start-up from a 16A single-phase supply

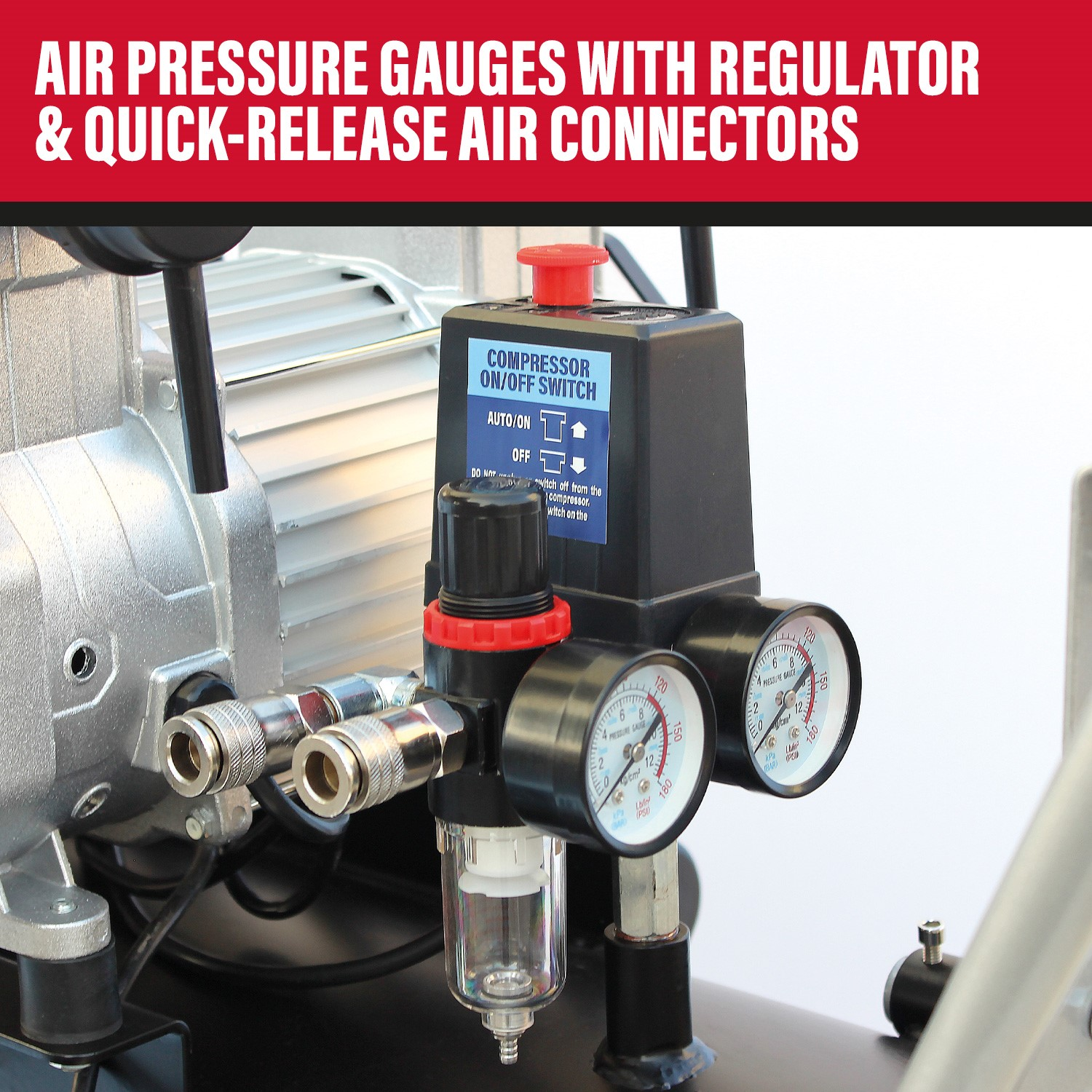

• 200ltr receiver with tank and working pressure gauges and quick-release connectors
• U-handle includes bracket and fixings for separate SIP Air Hose Reel                                                                                                                                              Technical Information


  ITEM NO.	05498
  Input Supply:	230v (16A)
  Motor Power:	4.5hp (3.3kW)
  Receiver Size:	200ltr
  Piston Displacement:	22.8CFM (646ltr/min)
  Free Air Delivery (FAD):	18.2CFM (515ltr/min)
  Max. Air Pressure:	116psi (8bar)
  Noise Level:	67dB
  Net Weight:	110kg
  Gross Weight:	130kg
  Product Dimensions:	870(H) x 470(W) x 1260mm(D)
  Packaged Dimensions:	900(H) x 490(W) x 1290mm(D)
