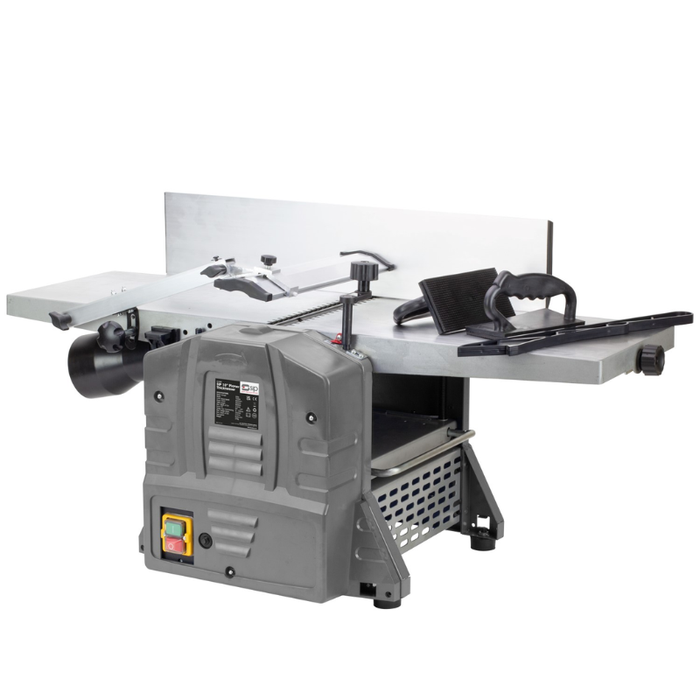

The SIP 10″ x 5″ Planer Thicknesser is built for quick and efficient planing via an 2.5mm adjustable cutting depth and a fence with 90° to 135° tilting. Built-in dust extraction for effortless planing. Designed for home and light trade use.
SIP 10 x 5 Planer Thicknesser 01558
€569.00 incl. Vat
Out of stock
Out of stock
Receive in-stock notifications for this.
Description
- 230v (13A) input supply; 1500w (2hp) motor
- 252mm planer width; 2.5mm max. cutting depth
- 90° to 135° fence tilting; adjustable and versatile
- 9000rpm cutter block speed; 920mm table size
- 5mm to 120mm timber thicknessing; 252mm width
- 6.4mtr/min feed speed, 2mm max. depth of cut
- Ideal for both square and chamfered planing
- Cast aluminium machine-surfaced table tops
for accurate planing of longer timber lengths - Power-fed rollers for consistently smooth finish
- Built-in dust extraction and expander adaptor
- Fitted with safety interlock switches
- Integrated NVR switch
Technical Description:
| ITEM NO. | 01558 | |
| Input Supply: | 230v (13A) | |
| Motor Power: | 1.5kW (2hp) | |
| Cutter Block Speed: | 9000rpm | |
| Dust Extraction Outlet (ID/OD): | 55mm / 62mm | |
| Dust Extraction Adaptor (ID/OD): | 63mm / 68mm | |
| PLANING | ||
| Planer Width: | 252mm | |
| Table Height: | 355mm | |
| Table Length: | 920mm | |
| Max. Cutting Depth: | 2.5mm | |
| Fence Tilting: | 90° – 135° | |
| THICKNESSING | ||
| Timber Size Range: | 5mm – 120mm | |
| Max. Timber Width: | 252mm | |
| Max. Depth of Cut: | 2mm | |
| Noise Level: | 105db(A) | |
| Net Weight: | 27.00kg | |
| Gross Weight: | 31.00kg | |
| Product Dimensions: | 450(H) x 880(W) x 420mm(D) | |
| Packaged Dimensions: | 1030(H) x 430(W) x 520mm(D) | |
Additional information
| Weight | 31 kg |
|---|---|
| Dimensions | 52 × 43 × 103 cm |
| Brand | SIP Industrial |
